ALLTRAIL 5
SKU: HLBR1
Frame shape
Wheel size29
Frame sizeFind my size
Colorocean / black / chrome - glossy
GeometryView details
CHF 4’599.00
Includes VAT
Description
Steep trails and flowing descents. Our ALLTRAIL 5 masters both. A trail bike that offers you the comfort of an eFully, but at the same time carries you safely over root passages and the like with the smoothness of a 29er. It’s with good reason that the ALLTRAIL 5 has been nicknamed the “Easy Rider”. Also, its equipment makes life as easy as possible for you both uphill and downhill: the Yamaha PW-S2 motor always offers you optimum support and its 720Wh battery provides enough energy – even for endurance tours. Thanks to the mullet setup with 29″ front and 27.5″ rear, the bike adapts perfectly to changing terrain. Reliable components from established companies such as Sram or TRP as well as 140mm suspension travel at the front and rear ensure comfort and safety at all times – even when you take a detour onto more demanding trails.
Specifications
Battery
Yamaha InTube 720Wh
Battery brand
Yamaha
Battery capacity
720 Wh
Charger
Yamaha Quick Charger 4A

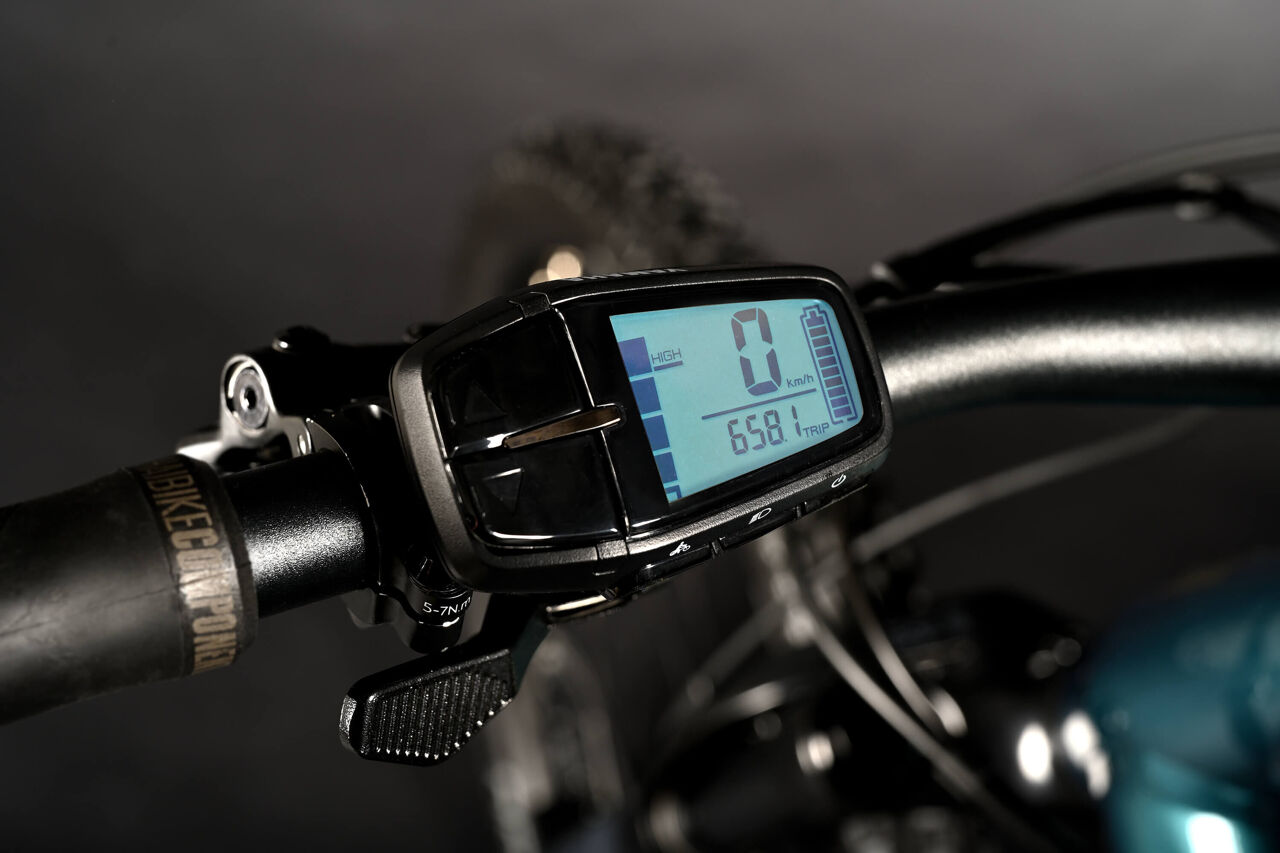

Display
Yamaha Side Switch
E-bike system
Yamaha
Maximum support speed
25 km/h

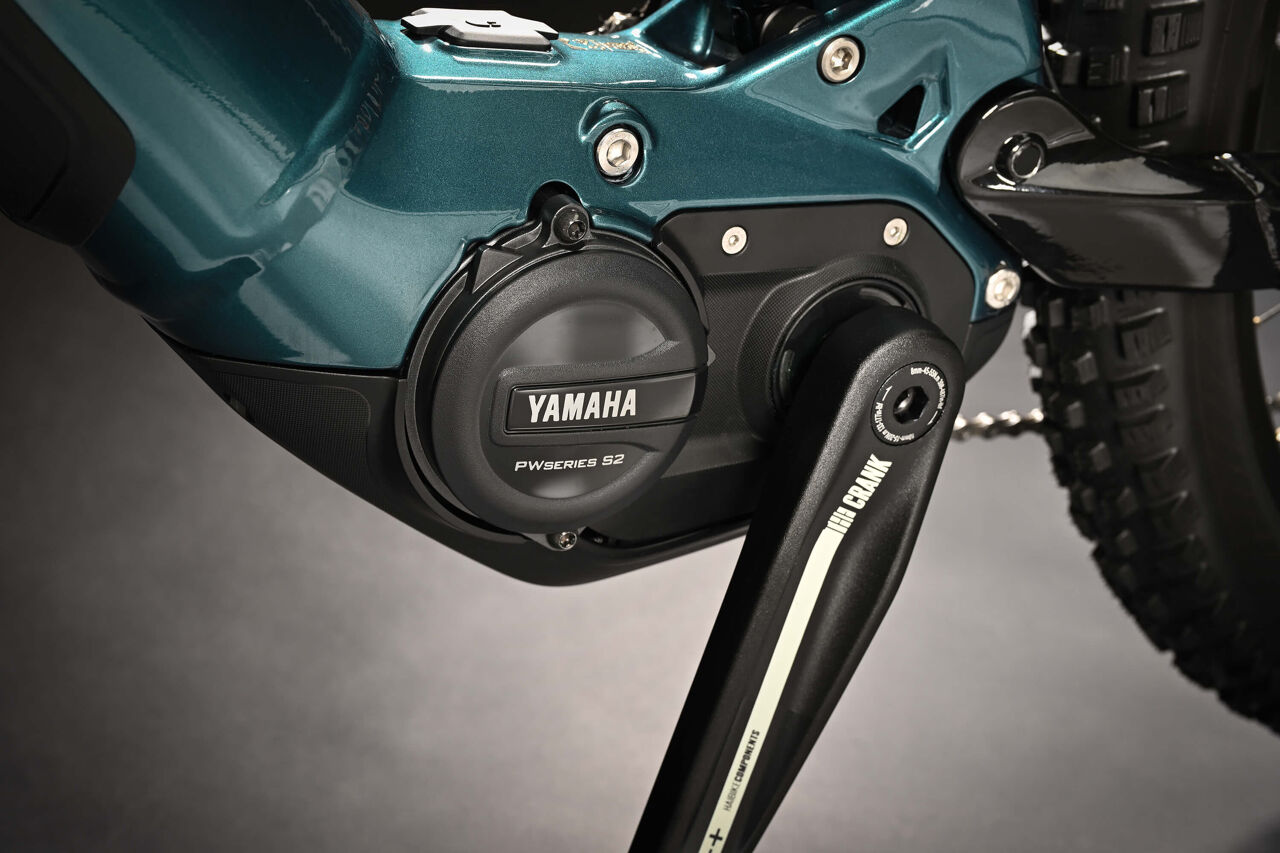

Motor
Yamaha PW-S2
Motor torque (nm)
75 Nm
Number of assistance levels
7
Walk Assist
Yes
Cassette
Sram PG1130
Chain
Sram Chain NX
Crankset
Haibike Components
Derailleur Rear
Sram NX
Frame
MTB Fully Aluminium Unisex
Frame material
Aluminium
Frame shape
MTB Fully
MRS
Yes
Number of gears
11
Shifter Right
Sram Triggershift NX

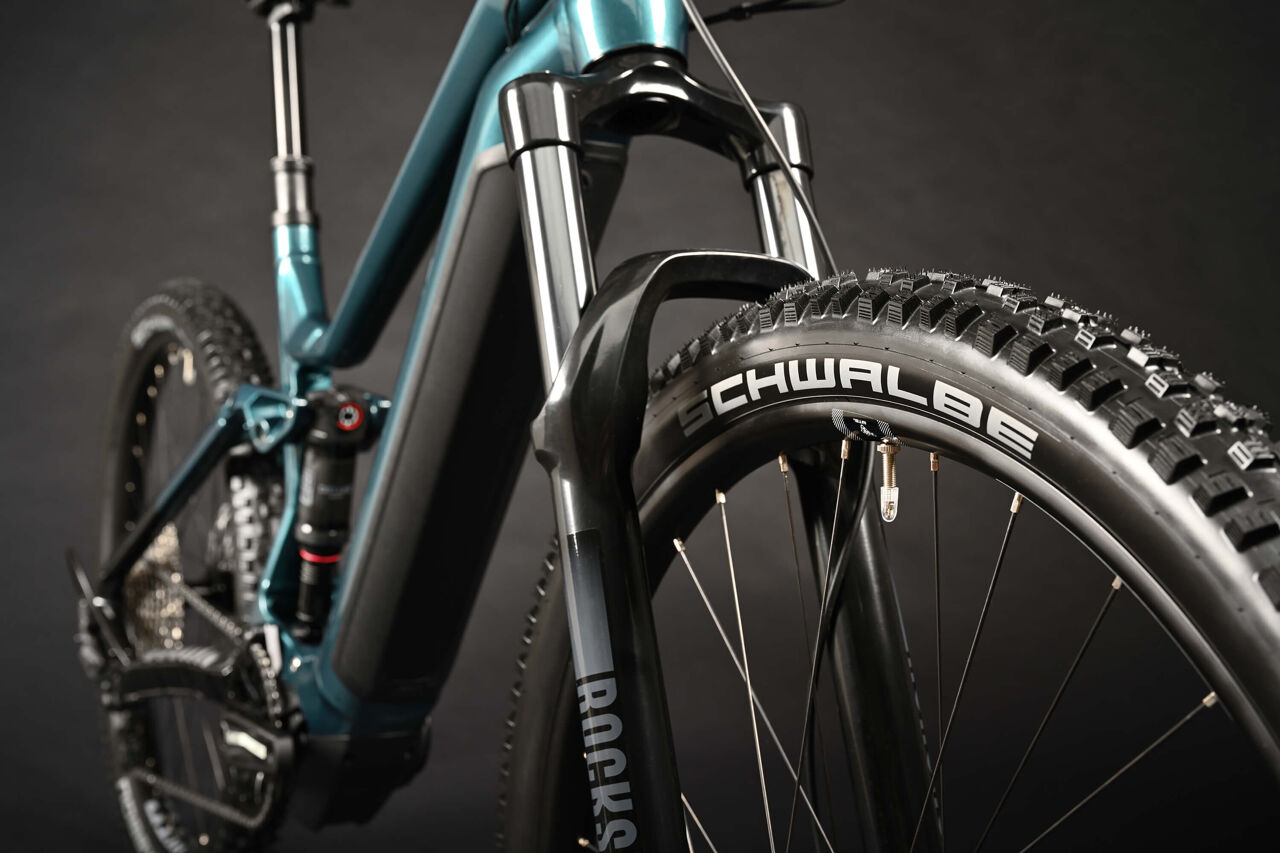

Front Fork
Rockshox 35 Silver
Shock
Rockshox Air Deluxe Select Plus
Travel
140 mm
Brake light
No
Brake Rear
TRP Hydraulic Disc brake Slate T4, 203 mm
Front brake
TRP Hydraulic Disc brake Slate T4, 203 mm
Grip kind
MTB grips
Handgrip brand
Haibike
Handlebar
Haibike TheBar ++
Pedal
Freeridepedal
Saddle
Selle Royal Vivo
Front wheel size
29
Rear wheel size
27.5
Rim
Rodi Hollow rim Tryp 30
Tyre
Schwalbe Nobby Nic Performance 62-622
Tyre size ETRTO
62-622
*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
