Bosch Performance Line CX, 600W, 85Nm, 25km/h
Find the Haibike ALLTRACK 10 near you
Description

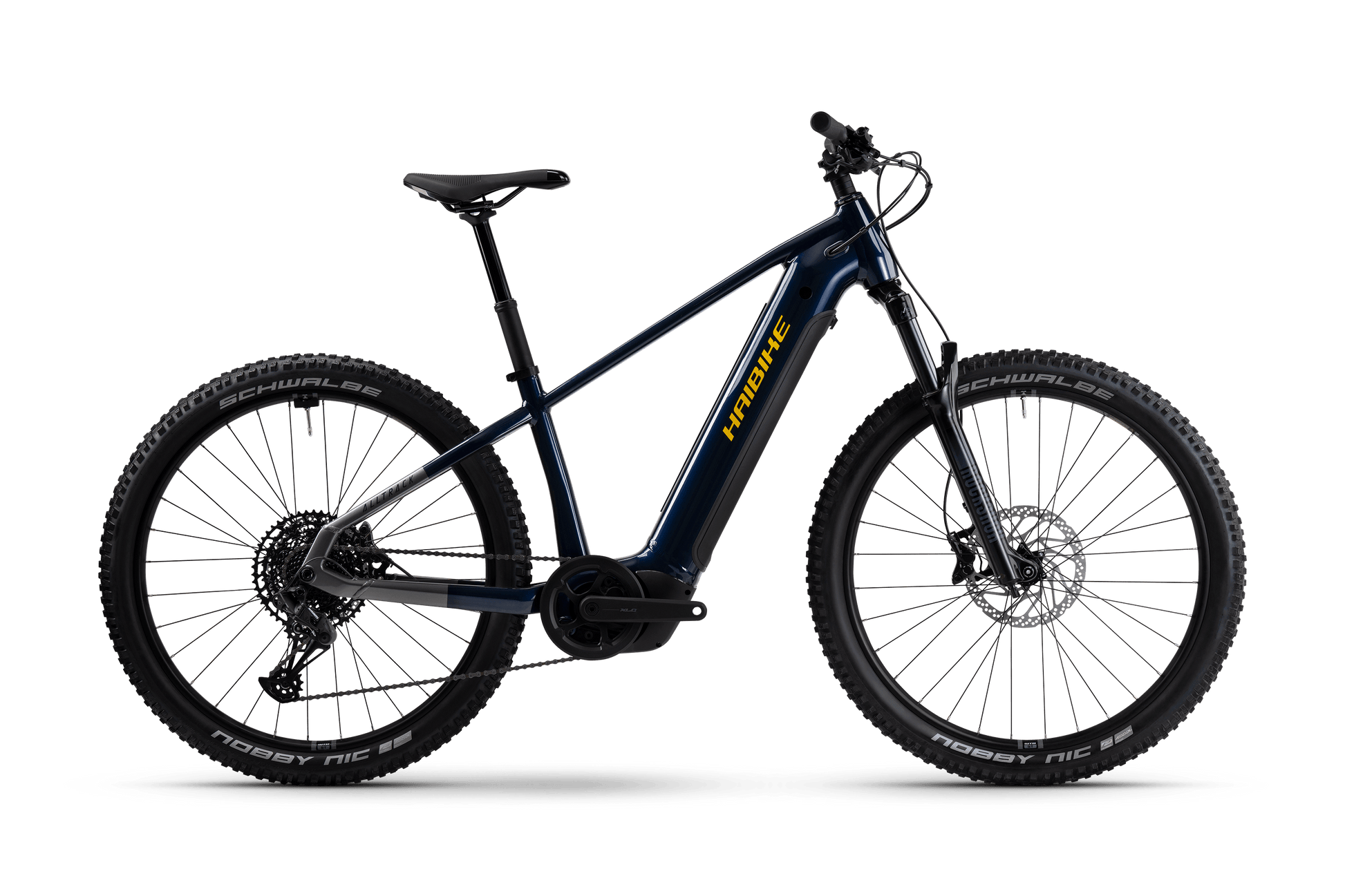

Unleash your inner adventurer. With our HAIBIKE ALLTRACK 10, that’s more than possible. A hardtail eMTB that blends comfort with sporty performance – on the road, in the woods or out on the trail. Thanks to the latest Bosch Performance Line CX motor, you benefit from cutting-edge drive technology. The large 800Wh battery – extendable with a 250Wh range extender – gives you plenty of range for long tours. Other features like the 120mm RockShox suspension fork, grippy SRAM DB4 disc brakes, wide Schwalbe knobbly tyres and dropper post keep you comfortable on any terrain. Practical: sizes M to XL roll on 29" wheels, size S comes with 27.5". Ready for your next adventure?
Description
Unleash your inner adventurer. With our HAIBIKE ALLTRACK 10, that’s more than possible. A hardtail eMTB that blends comfort with sporty performance – on the road, in the woods or out on the trail. Thanks to the latest Bosch Performance Line CX motor, you benefit from cutting-edge drive technology. The large 800Wh battery – extendable with a 250Wh range extender – gives you plenty of range for long tours. Other features like the 120mm RockShox suspension fork, grippy SRAM DB4 disc brakes, wide Schwalbe knobbly tyres and dropper post keep you comfortable on any terrain. Practical: sizes M to XL roll on 29" wheels, size S comes with 27.5". Ready for your next adventure?
Geometry
| Component | S | M | L | XL |
|---|---|---|---|---|
| B: Top Tube legth (mm) | 610 mm | 625 mm | 648 mm | 670 mm |
| C: Head tube length (mm) | 140 mm | 140 mm | 150 mm | 160 mm |
| D: Head Tube Angle | 68° | 67° | 67° | 67° |
| E: Seat Tube Angle | 74° | 74° | 74° | 74° |
| F: Chain stay length (mm) | 465 mm | 475 mm | 475 mm | 475 mm |
| G: Wheelbase (mm) | 1171 mm | 1216 mm | 1240 mm | 1264 mm |
| H: Stack (mm) | 656 mm | 674 mm | 683 mm | 692 mm |
| I: Reach (mm) | 422 mm | 432 mm | 452 mm | 472 mm |
| J: Stand over height (mm) | 76 cm | 76 cm | 76 cm | 79 cm |
| K: Bottom bracket drop (mm) | 60 mm | 65 mm | 65 mm | 65 mm |
Specifications
e-System
e-System
Battery: Bosch PowerTube 800Wh
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 300 + LED Remote
Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h
Frame
Frame
Frame: aluminium, disc brake Post Mount
Maximum loadable weight: 150kg
Drive
Drive
Cassette:
Chain: Sram Eagle 70 T-Type 12s
Crankset:
Derailleur Rear: Sram Eagle 70 T-Type 12s, 12-speed
Gear:
Number of gears: 12-speed
Shifter Right: Sram Eagle 70 T-Type Trigger, Trigger shifter
Suspension
Suspension
Front Fork: RockShox Reba RL Motion Control, DebonAir, Offset: 44 mm, Travel: 120mm
Travel:
Shock:
Damper:
Rear Travel:
Components
Components
Brake light:
Front Brake: Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 203 mm
Rear Brake: Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 180 mm
Headlight:
Rear Light:
Grips: XLC MTB Grip Set VLG-1751D2
Handlebar: XLC HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9° 780 mm
Pedal: XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
Saddle: XLC SA-S10 143 mm Sport
Seatpost: XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm, L: 399 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: XLC WR-M39 Disc 30/622 32H 6,5 mm Valve
Tyre: Schwalbe Nobby Nic Performance, ADDIX, 67EPI, 65-622
Documents
Documents
*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems
