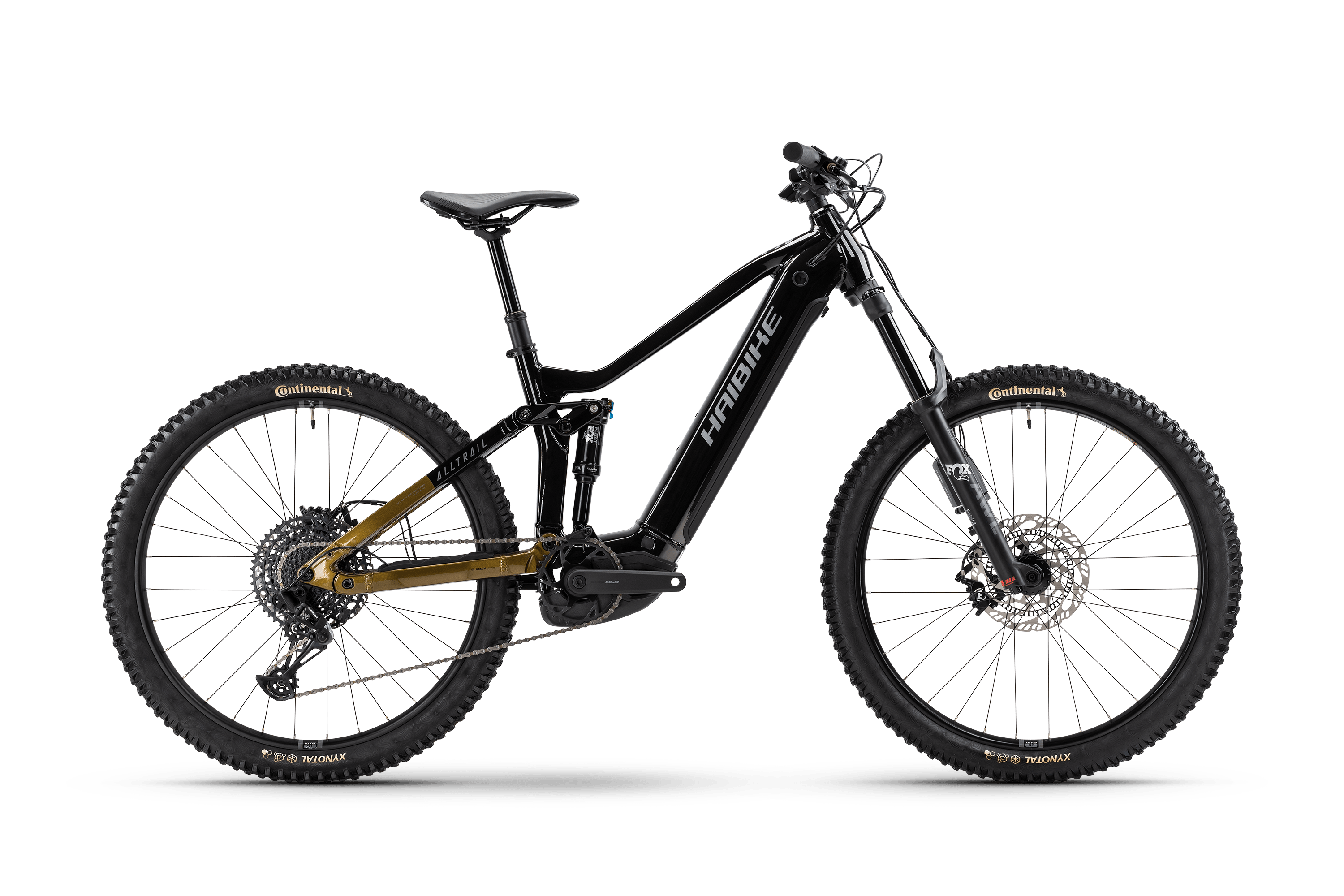

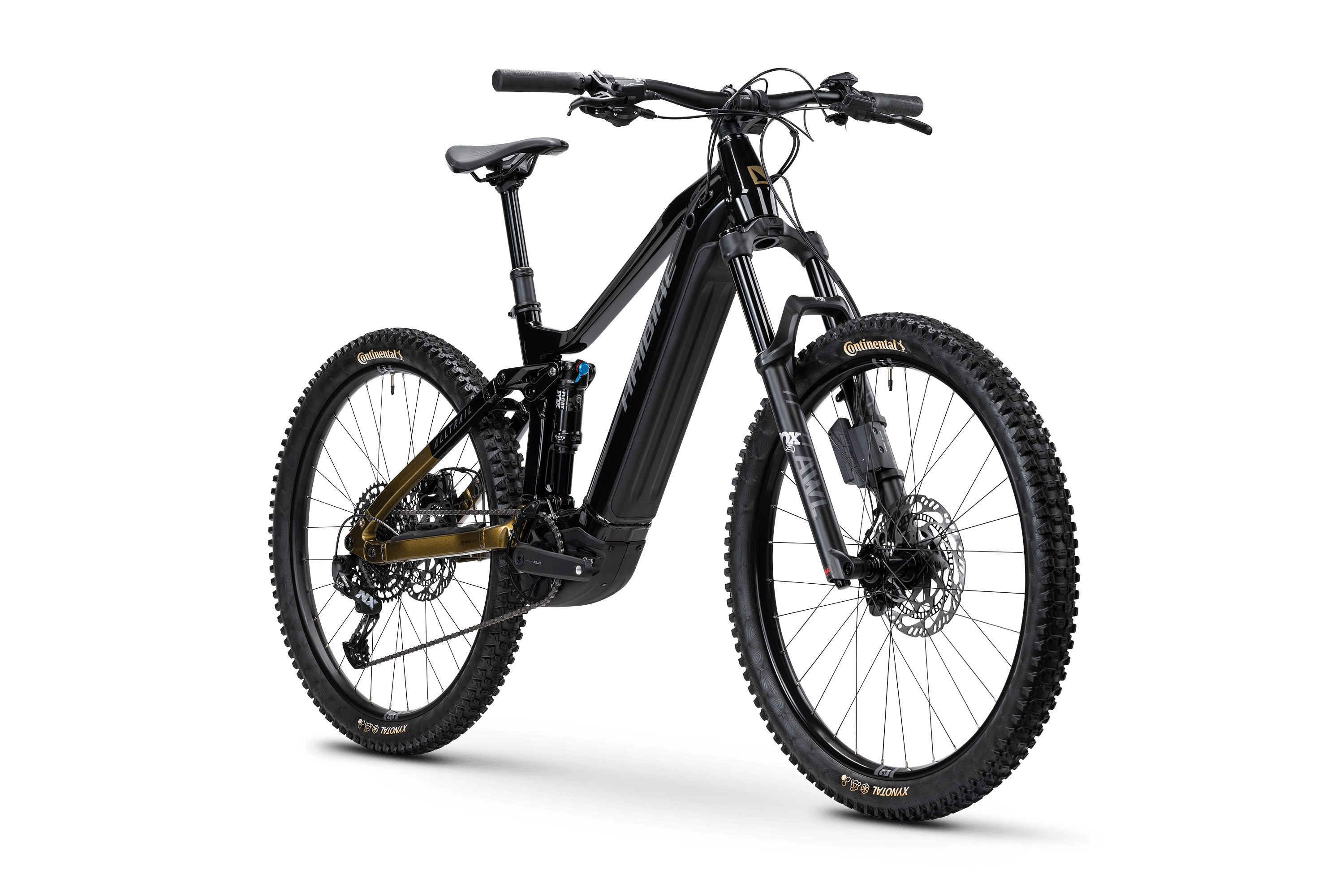

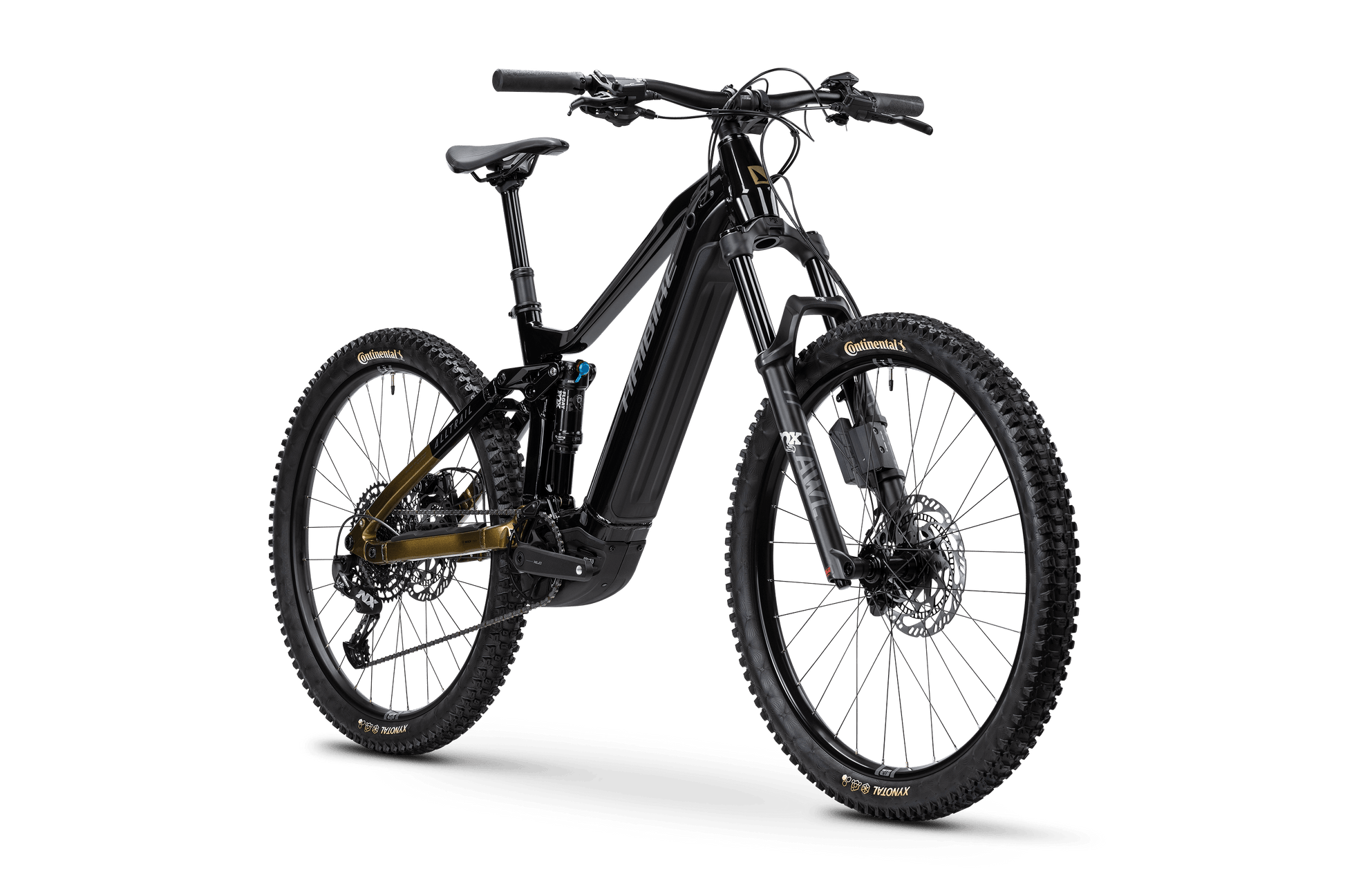

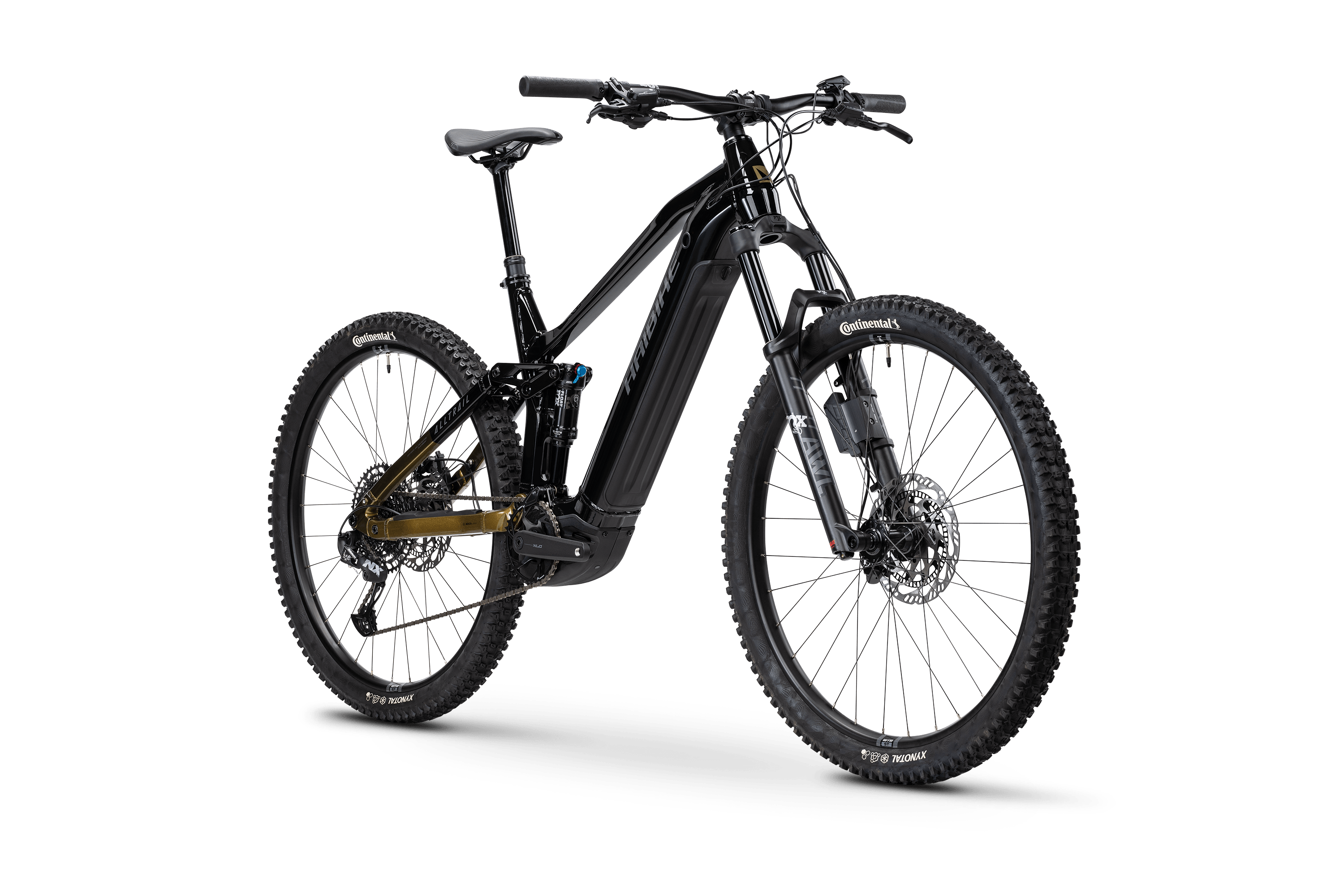

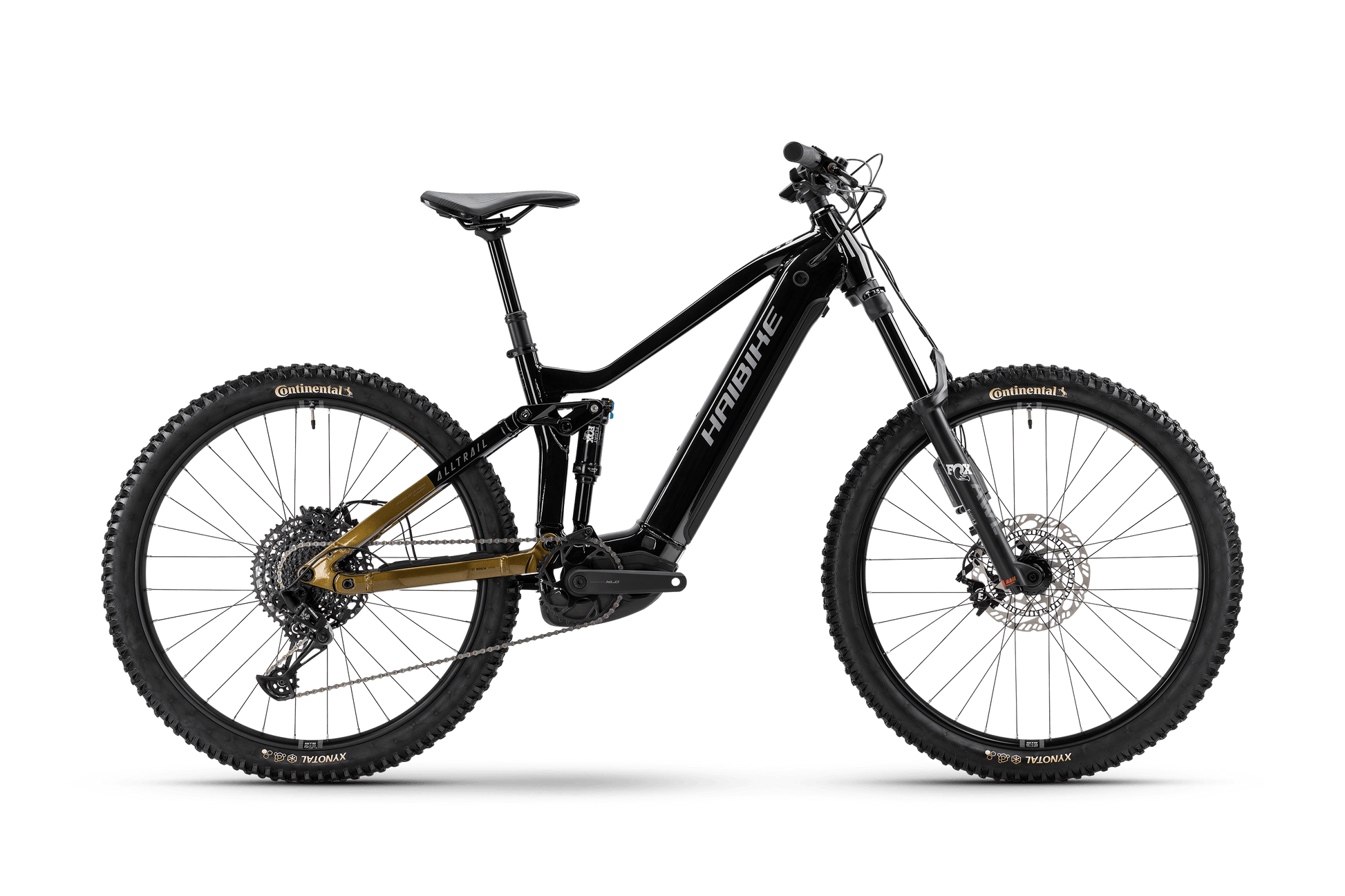

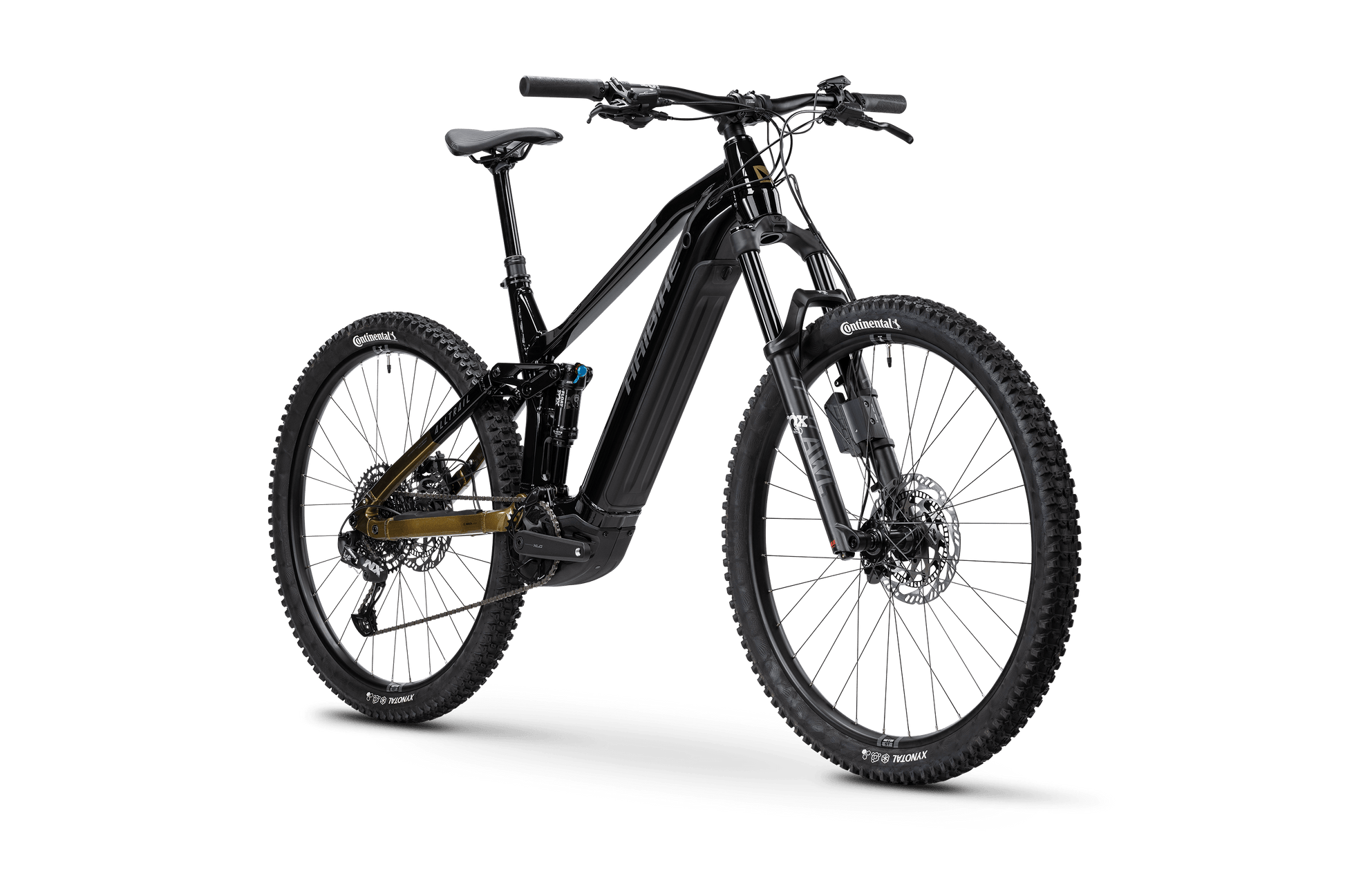

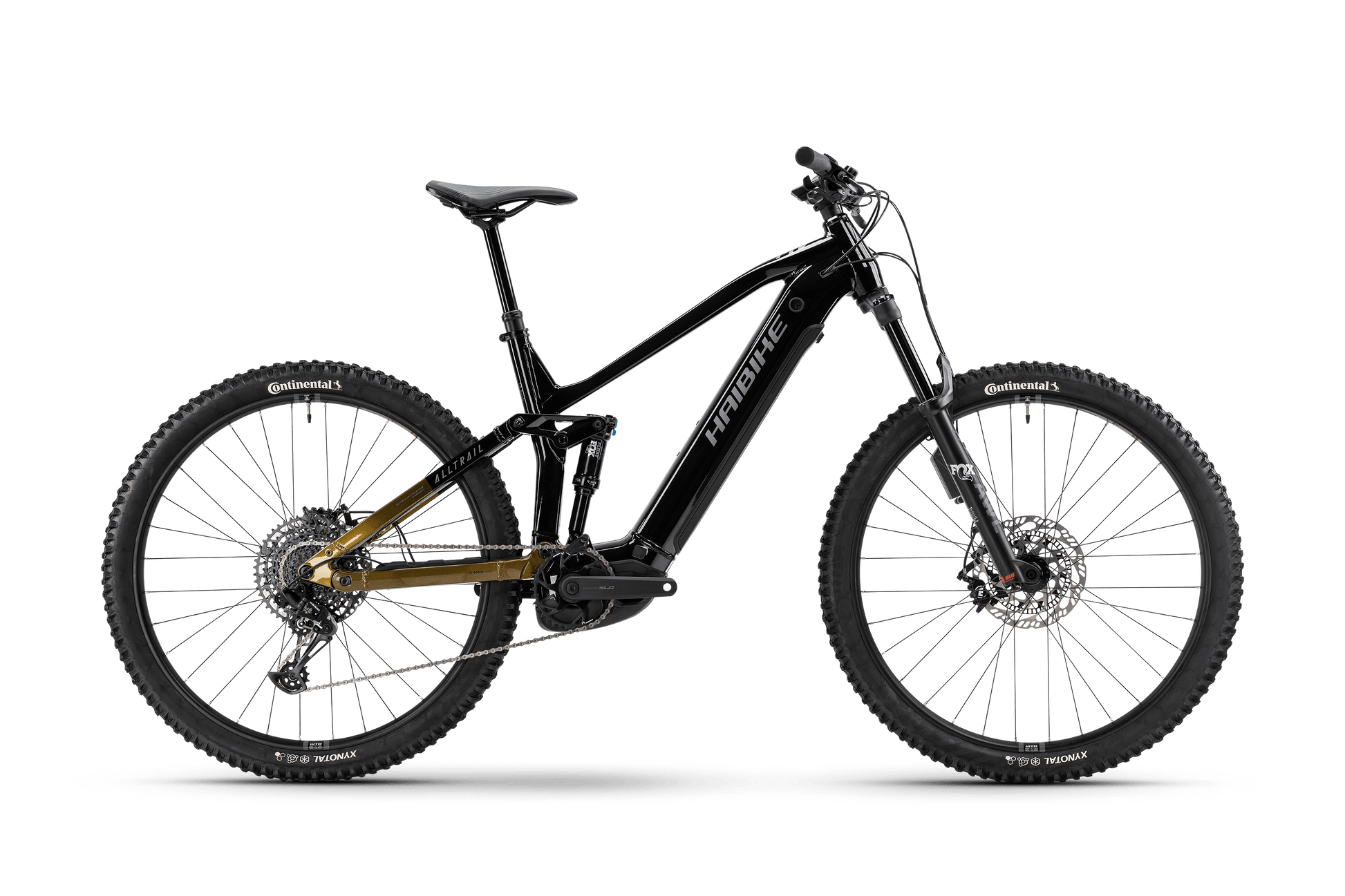

ALLTRAIL 10.5 ABS
ALLTRAIL 10.5 ABS
Bosch Performance Line CX, 600W, 85Nm, 25km/h
Description

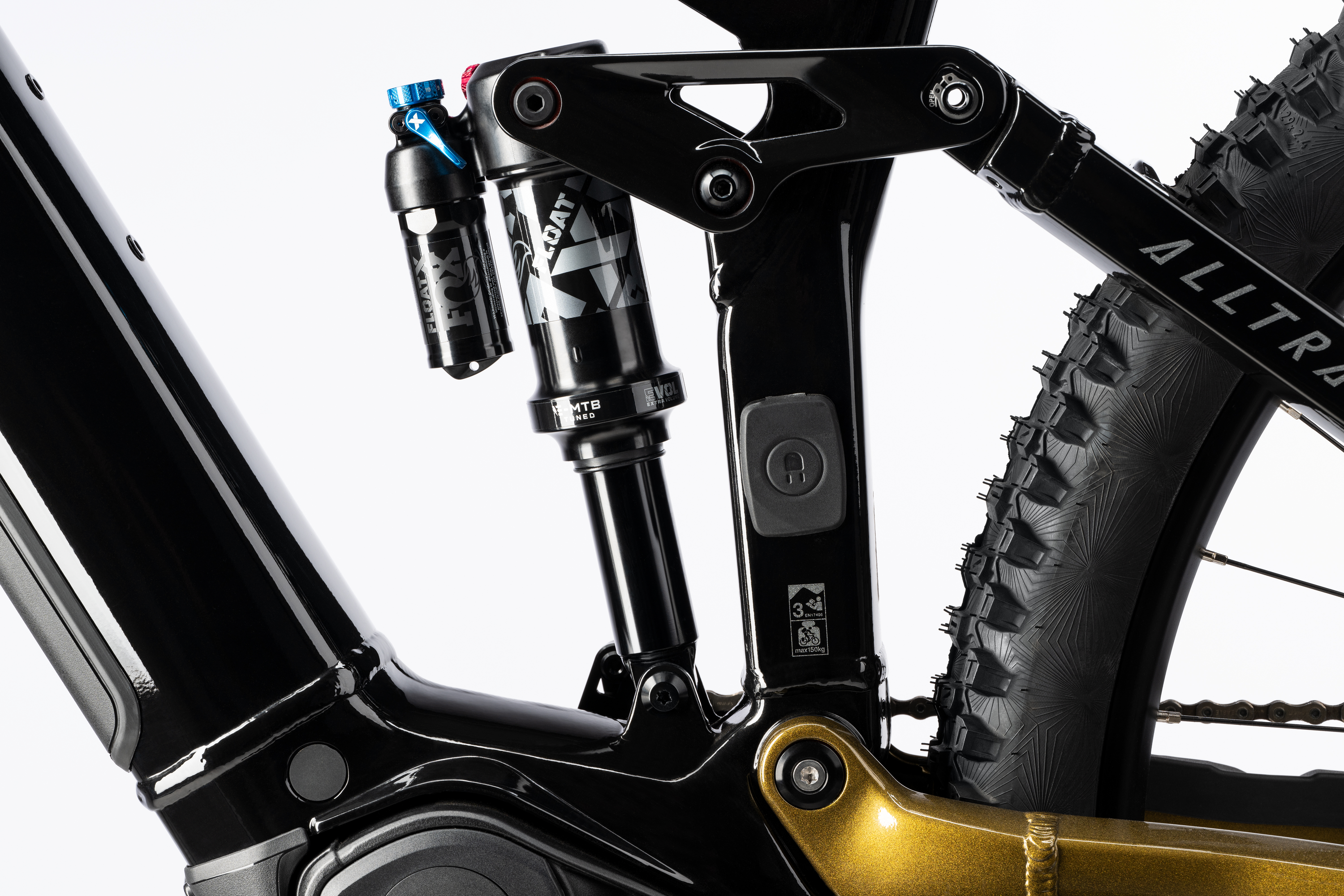

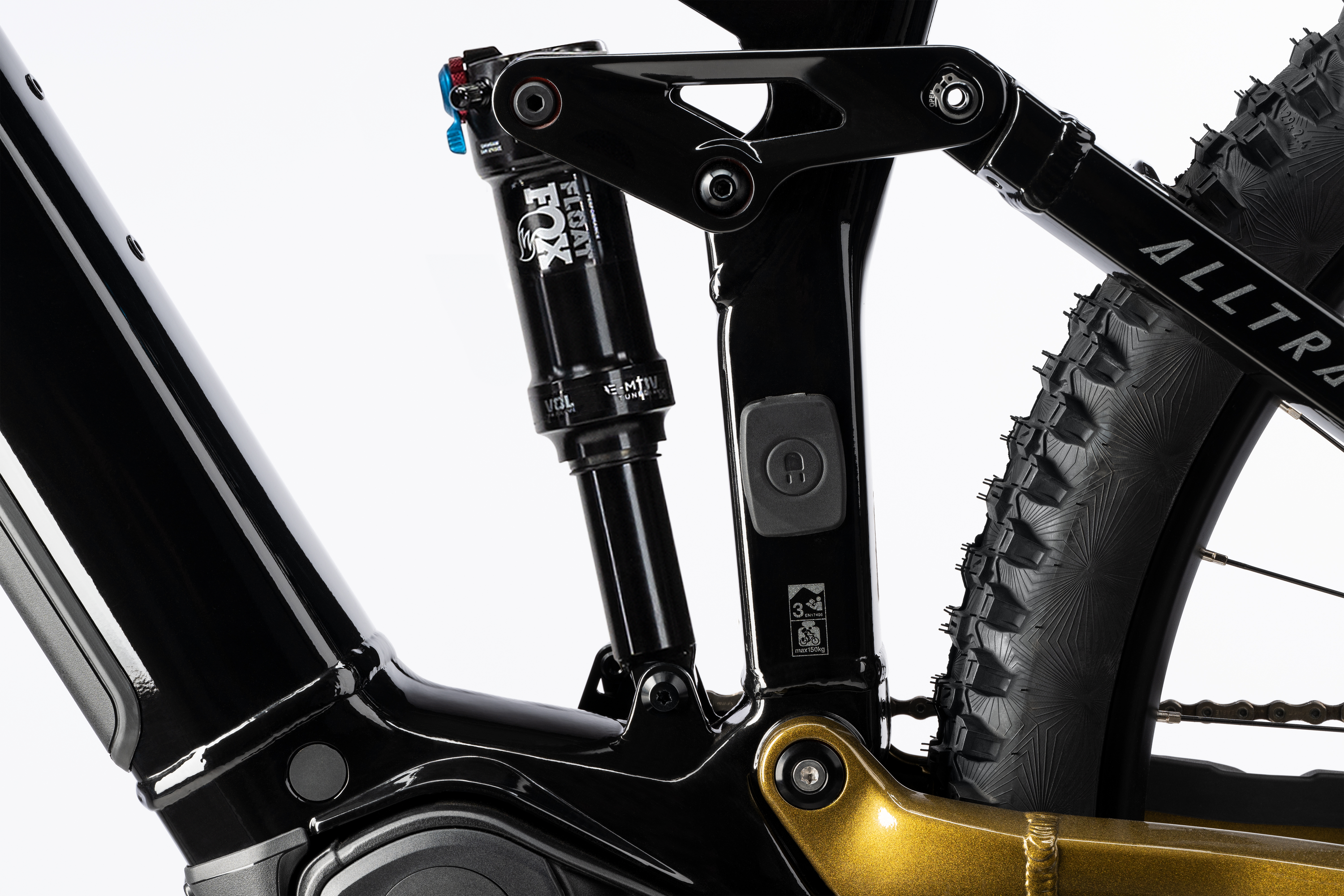

More power, more trails, more adventure. Our ALLTRAIL 10.5 ABS is the new flagship of our ALLTRAIL series – the perfect choice for those who demand no compromises on their trail adventures. With the brand-new Bosch Performance CX motor and a powerful 800Wh battery, this full-suspension eMTB conquers even the highest alpine paths. The Fox fork, RockShox shock and dropper seatpost deliver world-class performance on the downhills. And when things get tricky, the integrated eBike ABS, which prevents the front wheel from locking on slippery terrain, acts as your bodyguard. Need more range? The optional Range Extender boosts your battery by an additional 250Wh. This eMTB offers the ideal setup for more trails and more adventures – the wilder, the better.
Description
More power, more trails, more adventure. Our ALLTRAIL 10.5 ABS is the new flagship of our ALLTRAIL series – the perfect choice for those who demand no compromises on their trail adventures. With the brand-new Bosch Performance CX motor and a powerful 800Wh battery, this full-suspension eMTB conquers even the highest alpine paths. The Fox fork, RockShox shock and dropper seatpost deliver world-class performance on the downhills. And when things get tricky, the integrated eBike ABS, which prevents the front wheel from locking on slippery terrain, acts as your bodyguard. Need more range? The optional Range Extender boosts your battery by an additional 250Wh. This eMTB offers the ideal setup for more trails and more adventures – the wilder, the better.
Specifications
e-System
e-System
Battery: Bosch PowerTube 800Wh
Charger: Bosch Charger 4A 220-240V

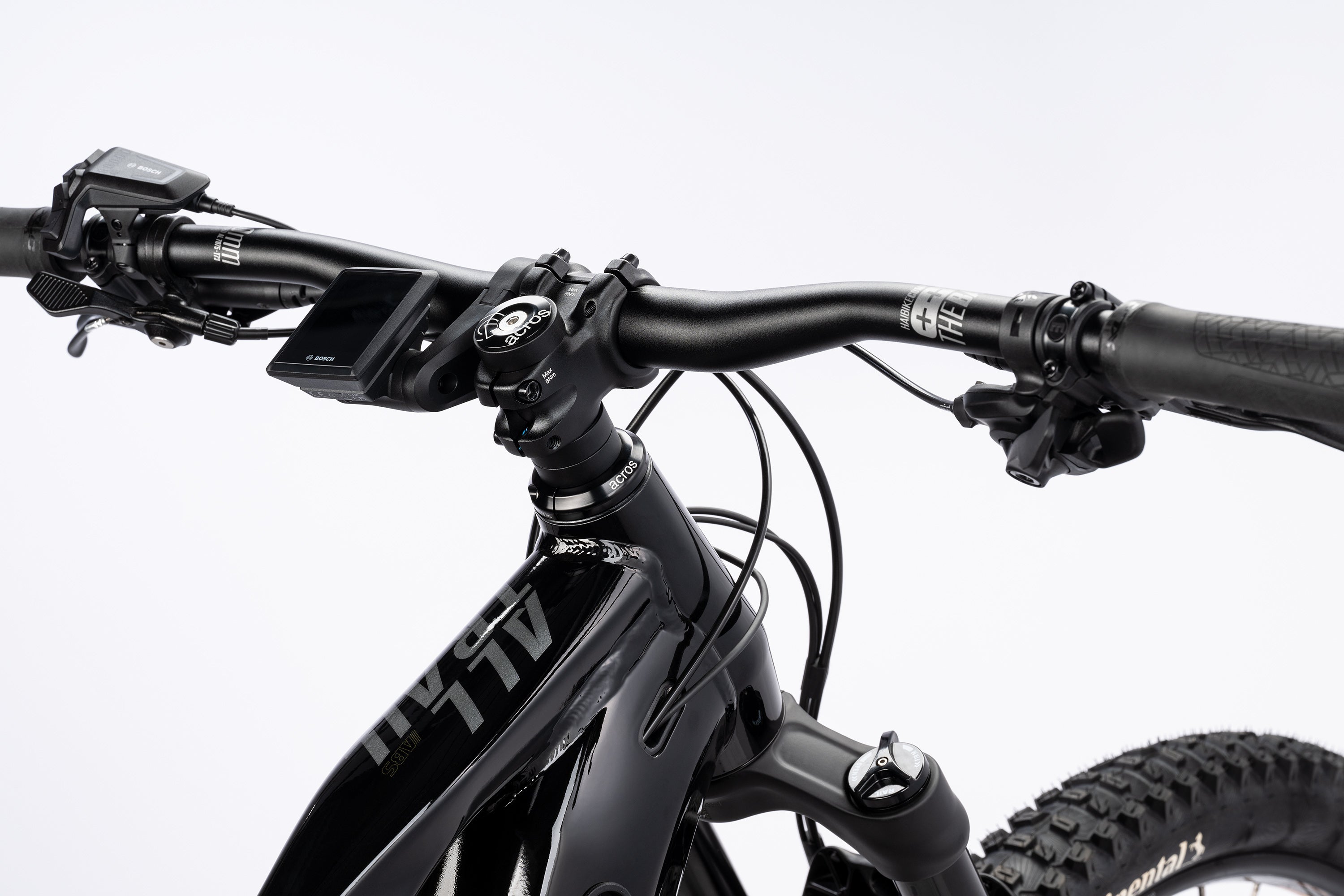

Display: Bosch Kiox 300 + LED Remote

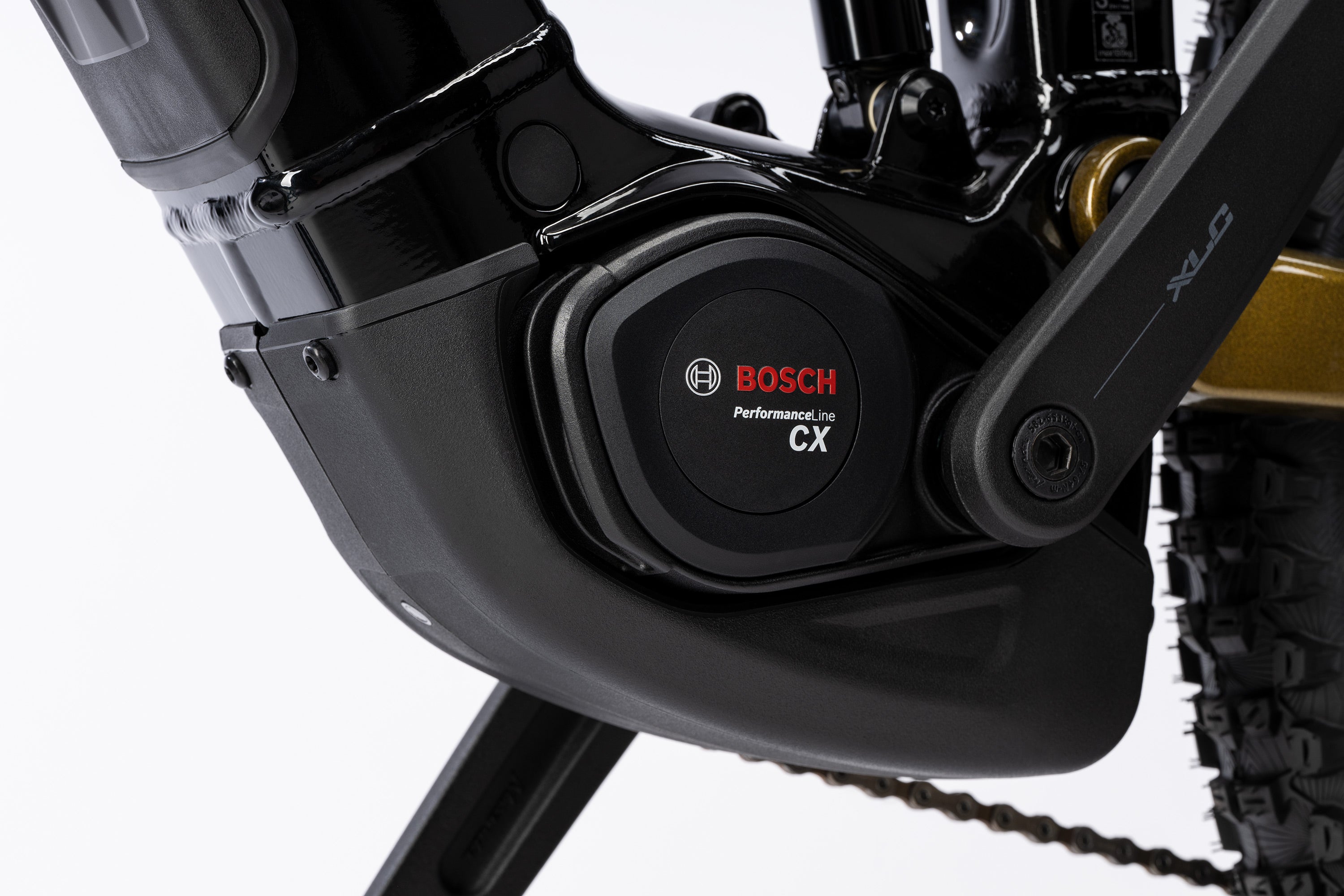

Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h
Frame
Frame
Frame: aluminium, disc brake Post Mount
Maximum loadable weight: 150kg

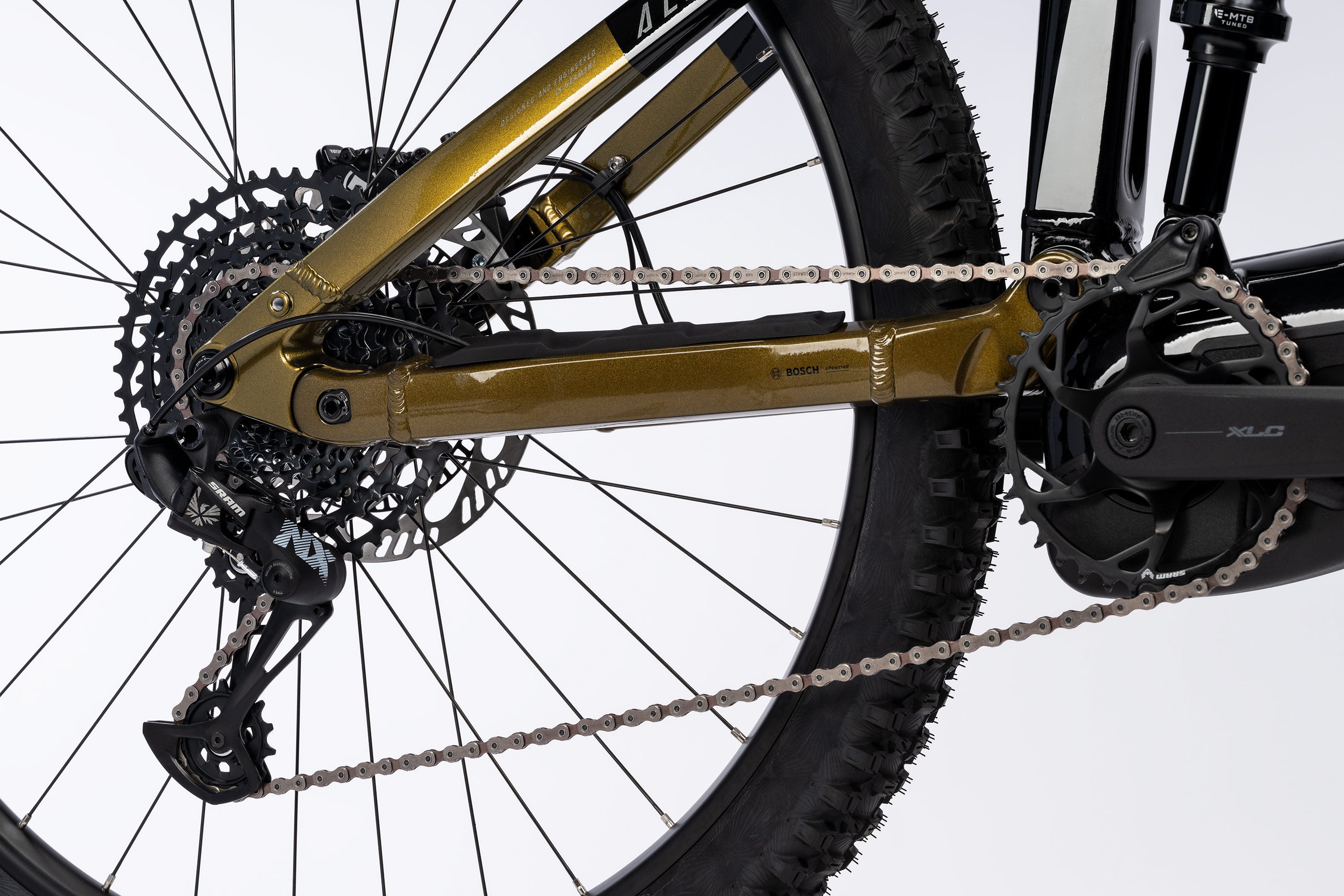

Drive
Drive
Cassette:
Chain: Sram SX Eagle 12s
Crankset:
Derailleur Rear: Sram NX Eagle 12s, 12-speed
Gear:
Number of gears: 12-speed
Shifter Right: Sram SX Eagle Single Click Trigger, Trigger shifter
Suspension
Suspension

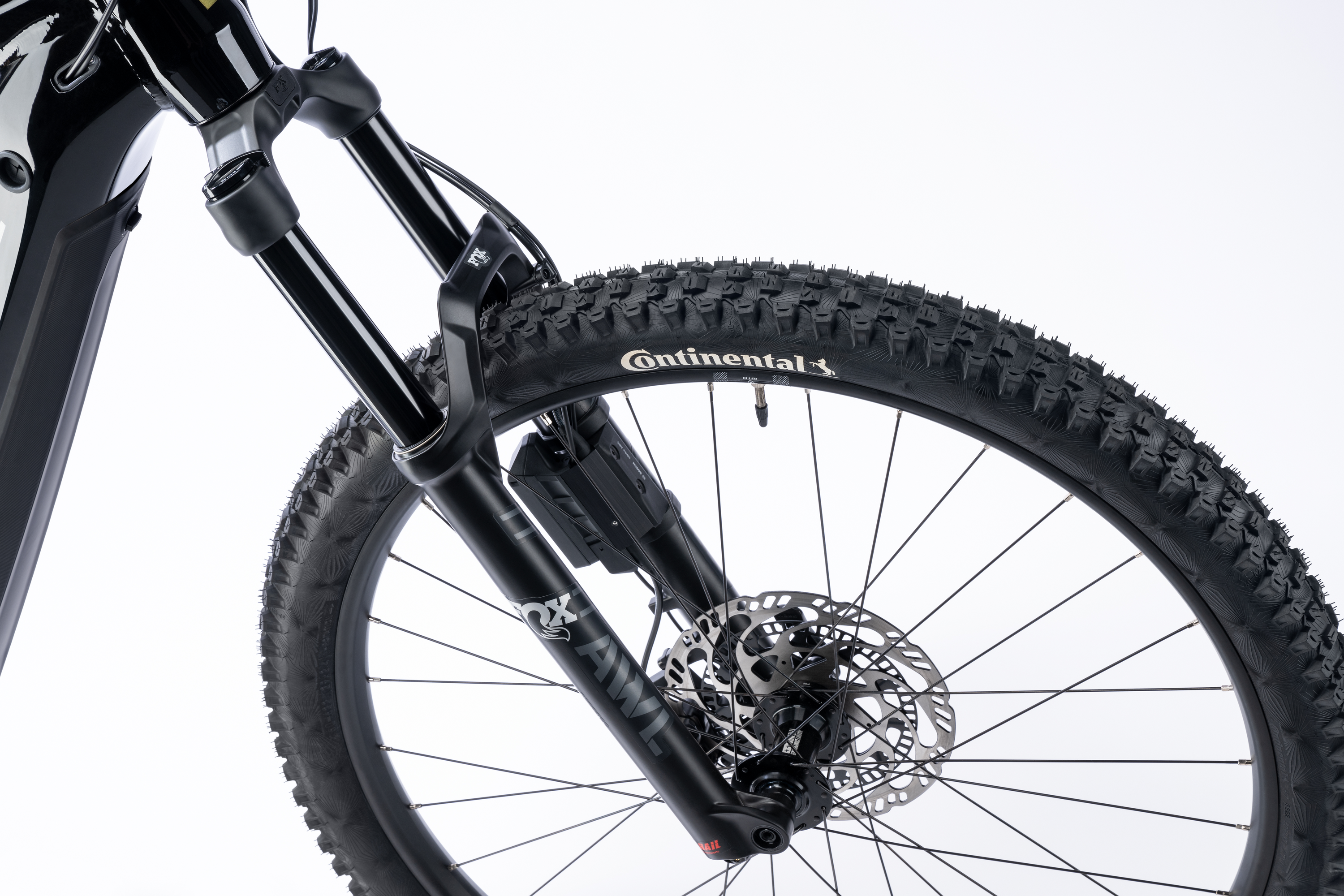

Front Fork: FOX 34 FLOAT AWL, Sweep Adjust, Offset: 44 mm, Travel: 140mm
Components
Components
Brake light:
Front Brake: Magura MT C Allroad ABS, 4 pistons, 203 mm
Rear Brake: Magura MT C Allroad ABS, 4 pistons, 203 mm
Headlight:
Rear Light:
Grips: XLC MTB Grip Set VLG-1751D2
Handlebar: Haibike TheBar++ Dia. 31.8 mm 780 mm
Pedal: VP Components VPE-527 Alloy w/ Reflector
Saddle: Selle Royal Vivo
Seatpost: Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: WTB ST i30 TCS 2.0 27.5" 32H
Tyre: Continental Xynotal Trail Endurance, foldable skin SL, 60-584
